A full motion tv wall mount runs $50 to $150 more than a fixed bracket once you add hardware and labor, and in a fair number of the rooms we quote, that extra money buys motion the household never actually uses. It’s also the mount most people reach for by default, assuming more adjustment is always the safer buy. Sometimes it is. Sometimes a fixed or tilting mount does the exact same job for less money and less wall stress. Here’s how to tell which situation you’re in before you spend on an articulating tv wall mount.
Key Takeaways
- A full motion tv wall mount adds extend, swivel, and tilt movement, which genuinely helps in corners, multi-seat rooms, and tight spaces where you need to angle around something.
- Expect $50 to $150 more in hardware cost and 15 to 30 extra minutes of install time compared to a fixed or tilting mount.
- Above a fireplace, the usual complaint is height, not angle. A full motion mount pulls the TV forward and tilts it, but it doesn’t lower it, so it often doesn’t fix the actual problem.
- Extending the arm creates a lever effect on your wall anchors, so stud mounting matters even more than it does with a fixed bracket.
- If you have one seat, a good sightline, and no glare problem, a fixed or tilting mount does the same job for less.

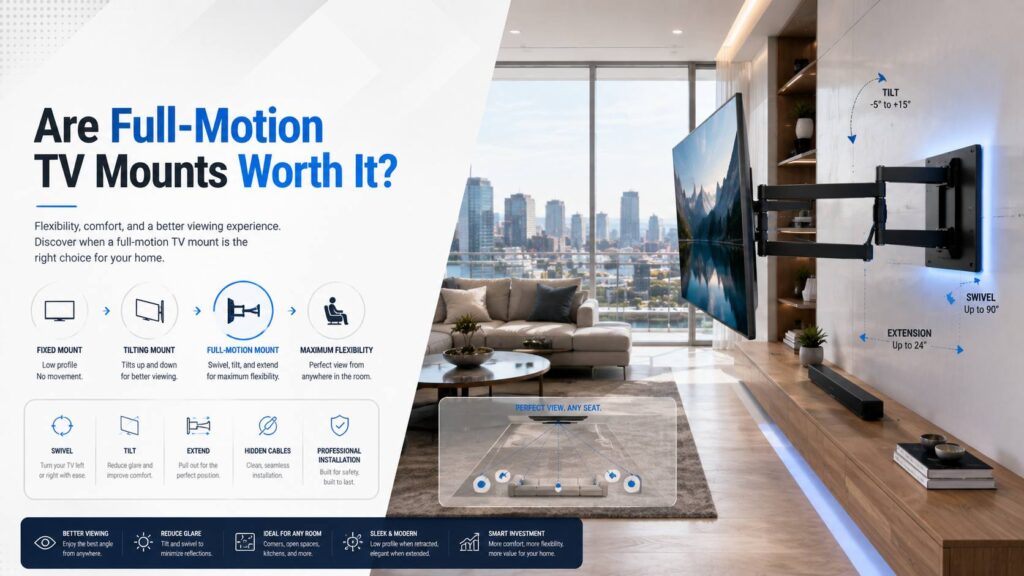

What Makes a TV Wall Mount Full Motion
A full motion mount, also called an articulating tv wall mount, pulls the screen away from the wall on a hinged arm, then lets it swivel side to side and tilt up or down. That’s three points of adjustment instead of the single tilt hinge on a tilting mount or the zero movement of a fixed bracket.
The specs vary a lot by model, and the range matters more than the label. Extension arms on residential mounts typically run from about 14 inches up to 40 inches or more on long-reach models, with most retracting to somewhere between 2.5 and 4 inches off the wall when flush. Swivel ranges commonly land between 120 and 180 degrees combined, and tilt is usually a smaller range than swivel, often something like 5 degrees up and 12 to 15 degrees down.
| Mount Type | Movement | Typical Weight Capacity | Typical Install Time |
|---|---|---|---|
| Fixed | None | Varies by model, no extension load | 30 to 45 minutes |
| Tilting | 5 to 15 degrees down | Varies by model | 45 to 60 minutes |
| Full Motion | Extend 14 to 40+ inches, swivel 120 to 180 degrees, tilt 5 to 15 degrees | Often 99 to 175 lbs on residential dual-arm models | 60 to 90 minutes |
Weight capacity is where a tv wall mount full motion buyer needs to pay closer attention than someone buying a fixed bracket. A fixed mount holds the TV’s weight straight against the wall. A full motion mount holds that same weight at the end of an arm, which changes the physics of the install even when the TV itself hasn’t changed. Matching a mount’s rated capacity to your TV’s actual weight and VESA pattern, as defined by the Video Electronics Standards Association’s mounting interface standard, is the starting point for that check, not the inch range printed on the box.
Full Motion TV Wall Mount Cost: What You’re Actually Paying For
National data on TV mounting generally puts professional installation between $150 and $350, with the mount type as one of the biggest swing factors inside that range. Fixed mounts sit at the low end since there’s less to level and test. Full motion mounts sit higher, both because the hardware itself costs more and because a proper install means testing the arm through its full swing and extension before the installer leaves, not just leveling a bracket and walking away.
With our own clients, the jump from a tilting mount to a full motion mount on the same TV usually adds somewhere in the range of an extra half hour of labor, plus a mount that costs more up front. That’s not a huge number on its own. It adds up when it’s paying for a feature the room doesn’t actually need.
Here’s the honest caveat: if you want a firm number for your TV size, wall type, and room, that’s worth getting a direct quote on rather than estimating from a blog post. If you’re ready for that, our tv wall mount installation service can confirm VESA fit, weight rating, and exact pricing before anything goes on the wall.
When the Extra Motion Actually Earns Its Keep
Picture an open-concept space where the kitchen island and a sectional both face the same wall from different angles. A fixed or tilting mount only serves one of those sightlines well. A full motion mount lets you swivel toward whichever seat is in use, which is exactly the scenario this mount type was built for. When a room like that is also getting smart lighting or shading tied together, it’s worth scoping the mount as part of a broader full home automation plan rather than a standalone purchase.
Corners are the other clear case. Mounting flat in a corner wastes the screen’s viewing angle for anyone not sitting dead center. Pulling the TV out and swiveling it toward the room, on a full motion arm, solves that in a way a fixed bracket simply can’t.
A few other situations where the added cost is usually worth it:
- Rooms with more than one regular seating position, where the TV genuinely gets watched from two or more spots at different times.
- Tight installs where you need to pull the screen forward to clear a mantel, a shelf, or a piece of furniture.
- Frequent cable or equipment access, since a full motion arm lets you swing the screen out to reach ports and cables without unmounting anything.
After enough installs, the pattern is pretty consistent: rooms with a single obvious seat rarely get the mount’s full range of motion used more than once or twice after installation day. If the room in question is a dedicated media space with tiered or angled seating, mount choice is really one piece of a bigger home theater build, and it’s worth planning screen position alongside seating layout rather than picking the mount first.
The Fireplace Myth: Why Full Motion Often Doesn’t Solve What You Think
This is the honest, slightly contrarian part. A lot of people buy a full motion tv wall mount for above the fireplace, assuming the extra articulation will fix the neck strain of looking up at a screen mounted too high. It usually doesn’t, because the actual problem is height, not angle. Most fireplace TVs end up with the screen center somewhere around 60 to 70+ inches off the floor, well above a comfortable eye line for someone seated on a couch. A full motion mount can pull that screen forward and tilt it down a few degrees, but it can’t lower it. The TV is still mounted at the same height on the wall; it’s just closer and angled slightly differently.
If the real problem is that the TV sits too high, the fix is a different mount height or a mantel-style mount designed for vertical travel, not more swivel and tilt. Full motion still has a place above a fireplace when the room also has an off-angle second seating area, but if height is the only complaint, don’t pay the premium expecting it to solve something it isn’t built to fix.
Glare is a related case worth separating out. A tilting mount can angle a screen down enough to cut glare from an overhead light. But if the glare is coming from a window at a fixed time of day, the more durable fix is often blocking the light at the source. Adding motorized shading to that window frequently solves the problem better than any amount of mount adjustment, and it’s worth weighing against the cost of upgrading the mount itself.
What to Look for in the Best Full Motion TV Wall Mount
Once you’ve confirmed a full motion mount is the right call for the room, a few specs matter more than the marketing copy on the box:
- Weight capacity with margin. Don’t buy a mount rated exactly at your TV’s weight. Leave real headroom, since the extension arm adds stress the rating already needs to absorb.
- VESA range that matches your TV, not just the inch range on the box. Confirm the exact millimeter pattern on the back of your TV against the mount’s listed VESA compatibility.
- Extension length matched to the room, not the longest arm available. A 40-inch extension is wasted in a room where the couch is 6 feet from the wall, and it adds unnecessary strain on the mounting points for no real benefit.
- Stud spacing compatibility. Most residential mounts are built for 16-inch on-center studs; older homes and some newer construction use 24-inch spacing, which not every mount plate accommodates.
- Dual-arm construction for anything over about 55 inches. A single-arm mount can work on smaller, lighter TVs, but dual arms distribute the load more evenly at full extension on larger screens.
If you’re mounting a Frame TV’s flush wall mount specifically, note that Samsung’s No-Gap style mount is built for a fixed, flush profile by design. Adding full motion defeats the point of that flush look, so most Frame TV installs skip articulating mounts entirely.
Mistakes to Avoid With Full Motion Mounts
Anchoring into drywall alone. A fixed mount might survive drywall anchors on a small TV. A full motion mount at extension almost never should. The pull from the extended arm means the mounting points need to hit studs, not just drywall anchors, on nearly every residential install. The stakes here are real: the Consumer Product Safety Commission’s tip-over safety data shows hundreds of fatalities tied to TVs and furniture tipping since 2000, most of them involving children, which is exactly the kind of failure a properly stud-mounted bracket is designed to prevent.
Buying based on maximum extension instead of room depth. More reach sounds better on the box, but a longer arm that never gets used at full extension is just added stress on the wall for no benefit.
Skipping the swing test after installation. A mount that installs level can still bind or sag once fully extended if a joint wasn’t torqued correctly. Walking the arm through its full range before calling the job done catches this before it becomes a problem months later.
Assuming full motion fixes a height problem. As covered above, this is the single most common mismatch between what people expect and what the mount actually does.
Where to Start This Week
If your room has one clear seat and a TV that’s already close to eye level, save the money and go with a fixed or tilting mount instead. If you’re dealing with a corner, an open floor plan with more than one seating zone, or a wall where you genuinely need to pull the screen forward, a full motion mount is worth the extra cost, and getting the weight rating and stud spacing right matters more than it does with a simpler mount. Our team can look at your TV, your wall, and how the room actually gets used, then tell you plainly whether full motion is worth it for your specific setup or whether a simpler fixed or tilting install gets you the same result for less. For a side-by-side on how full motion stacks up against the other two mount types, our guide on how the three mount styles compare walks through fixed and tilting mounts in more depth.
Frequently Asked Questions
Is a full motion TV mount worth the extra cost?
It depends on the room. In corners, open floor plans with multiple seating zones, or tight installs where the screen needs to clear furniture, the extra $50 to $150 is usually worth it. With one fixed seat and a good sightline, a fixed or tilting mount does the same job for less.
What’s the difference between a full motion and an articulating TV mount?
Nothing. Full motion and articulating describe the same category of mount, one that extends, swivels, and tilts, as opposed to a fixed mount with no movement or a tilting mount with only up and down adjustment.
Do full motion TV mounts work above a fireplace?
Sometimes, but not for the reason most people expect. If the fireplace TV is simply mounted too high, a full motion mount pulls the screen forward and angles it down slightly, but it doesn’t lower the screen itself, so the height problem usually remains.
How far can a full motion TV mount extend from the wall?
Most residential full motion mounts extend somewhere between 14 and 40 inches, depending on the model, with some long-reach mounts going further. Match the extension to your actual room depth rather than buying the longest option available.
Do full motion mounts need to hit two wall studs?
In almost every case, yes. The extended arm creates a lever effect on the mounting points, so stud mounting, not drywall anchors alone, is what keeps a full motion mount secure at extension.
If you’re not sure which mount type fits your room, a quick look at your wall and seating layout settles it fast.
